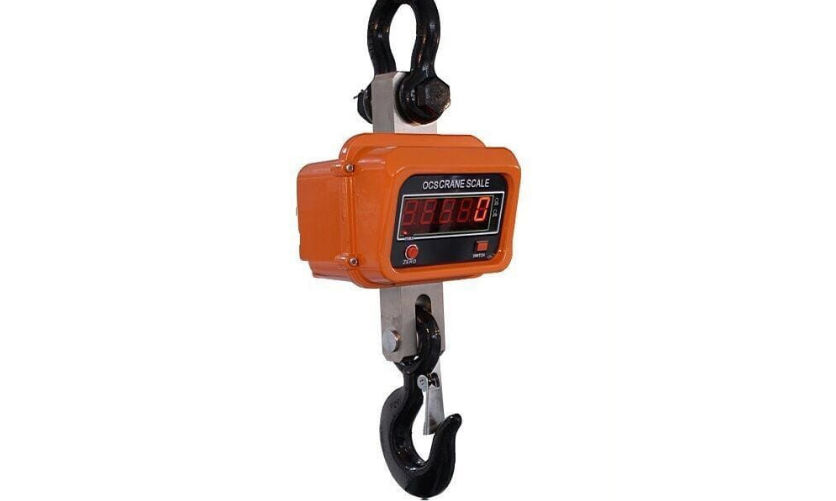

Prachi Enterprises offers advanced Crane Scales in Pune designed for accurate, safe, and efficient weighing of suspended loads. Built with rugged construction and modern wireless technology, our crane weighing systems are ideal for industries handling heavy materials such as steel, construction, logistics, and manufacturing.
Our crane scales combine high precision load cell technology with wireless communication, allowing operators to monitor weight readings from a safe distance, improving both productivity and safety.
Model & Dimensions Table
Our crane scales are available in various capacities with precise dimensions to suit your industrial lifting needs.
| Model | Capacity (kg) | Division (kg) | Counts | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OCS-2T | 2000 | 1 | 2000 | 255 | 190 | 205 | 580 | 706 | 746 | 351 | — | 13.5 |
| OCS-3T | 3000 | 1 | 3000 | 255 | 190 | 205 | 580 | 706 | 746 | 351 | — | 13.5 |
| OCS-5T | 5000 | 2 | 2500 | 255 | 190 | 205 | 680 | 887 | 360 | 451 | — | 18.5 |
| OCS-10T | 10000 | 5 | 2000 | 255 | 190 | 205 | 780 | 1149 | 271 | 593 | — | 30 |
| OCS-15T | 15000 | 5 | 3000 | 255 | 190 | 205 | 830 | 1209 | 777 | 653 | — | 36.5 |
Product Description: Our digital crane weighing scales are manufactured as per GB/T11883-2002 standards, ensuring reliable performance in industrial environments. With OIML III accuracy, fast data processing, and wireless connectivity, these machines deliver consistent and precise measurements even under heavy load conditions.
The system includes a high-strength load cell, wireless indicator, and durable hook assembly, making it suitable for continuous industrial usage.
Rugged & Durable Design
Precision die-cast aluminum alloy body ensures long-lasting performance in harsh industrial environments.
Wireless Operation
Monitor weight readings remotely up to 200 meters for improved safety and convenience.
High Capacity Range

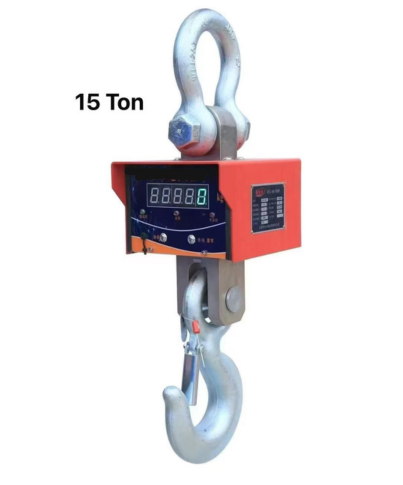

Available up to 15 Ton capacity, suitable for heavy industrial applications.
Key Technical Features
Our crane scales are engineered with advanced technology for precision, durability, and safety.
- Accuracy Standard: OIML III
- High-Speed Conversion: ≥ 50 times/second
- Conversion Method: Sigma-Delta (Σ-Δ)
- Load Cell Excitation: DC 5V
- Max Internal Code: 1 million
- Non-Linearity: < 0.01% F.S
- Calibration: Keyboard-based
- Display: 192×64 LCD (Backlit, easy readability)
- Clock Function: Y/M/D & H/M/S (±5 sec/24 hrs)
- Data Storage: Up to 2000 records
- Communication: RS232C interface
Working Conditions
- Operating Temperature: Scale: -10°C to +50°C | Indicator: 0°C to +40°C
- Humidity: ≤ 85%
- Wireless Frequency: 450 MHz
- Wireless Range: Up to 200 meters (no obstacles)
Performance Specifications
- Accuracy Class: OIML III
- Tare Range: 100% F.S
- Stable Time: 5 – 8 seconds
- Safe Overload: 120% F.S
- Ultimate Overload: 500% F.S
- Overload Alarm: 100% F.S
- Zero Range: 4% F.S
- Battery: 6V / 4Ah rechargeable
- Continuous Working Time: > 100 hours
Applications of Crane Scales
- Steel & metal industries
- Construction sites
- Warehousing & logistics
- Shipping & cargo handling
- Scrap & recycling industries
- Heavy machinery manufacturing
Why Choose Prachi Enterprises?
We are a trusted crane scale supplier in Pune, offering high accuracy, industrial-grade performance, and strong after-sales support.
Key Features of Crane Scale
- Rugged & Durable Design – Precision die-cast aluminum alloy body.
- Integrated Load Cell – Compact and strong design with built-in load cell.
- Wireless Operation – Remote monitoring up to 200 meters.
- High Strength Components – Heavy-duty hooks and American standard rings.
- Maintenance-Free Battery – Fully sealed rechargeable battery.
- High Capacity Range – Available up to 15 Ton.
- Trusted crane scale supplier in Pune
- Competitive pricing and strong support
Service & Support
We provide comprehensive repair and maintenance services to keep your weighing equipment working efficiently. Our team offers quick response and genuine spare parts.
- On-site calibration and repair
- Affordable service plans
Frequently Asked Questions
Up to 15 Ton crane scales are available.
Up to 200 meters without obstacles.
Yes, it is designed for industrial and outdoor environments.
Yes, it can store up to 2000 weighing records.
